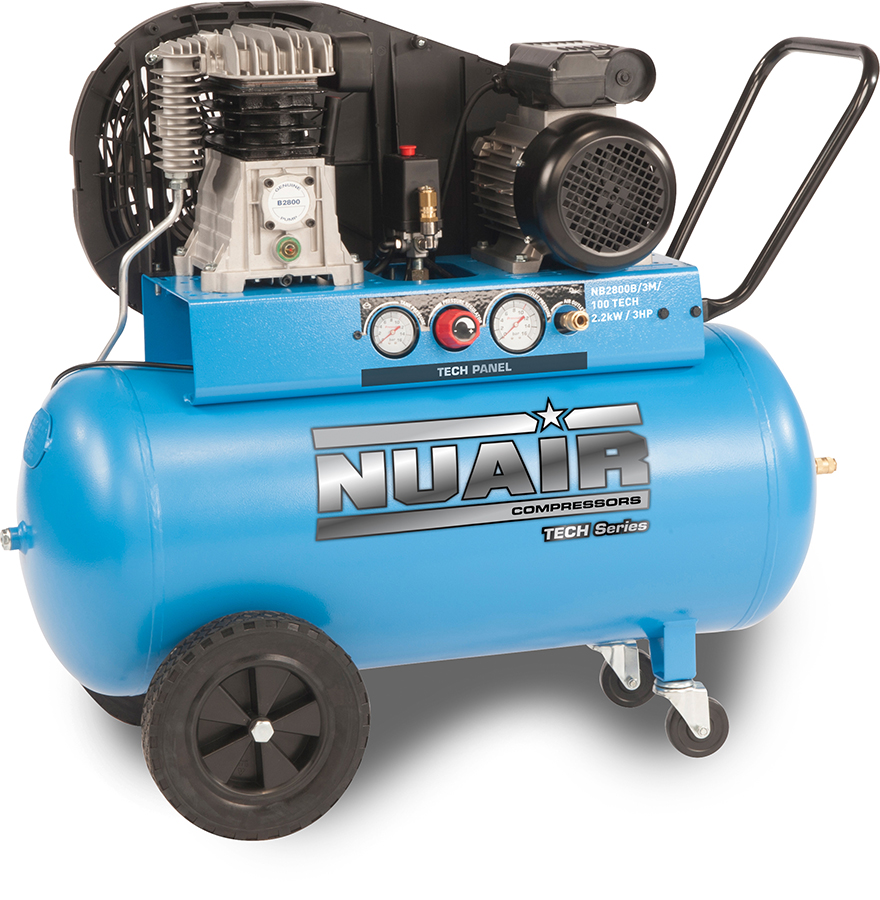

NUAIR Belt Driven 100 Litre Compressor – Tech Series 2.2kw (13 amp)

Part No: NB2800B/100/3M TECH

Type: NUAIR

Sub-Type: TECH Series

    • NUAIR Belt Driven 100 Litre Compressor – Tech Series 2.2kw (13 amp)

Our most portable and practical compressor for your workshop*

The NUAIR range of TECH series compressors have been designed to offer maximum user comfort in terms of ease of use, simple controls, portability and conveniences. Available as Direct Drive or Belt Driven variants features of the NB2800B/100/3M model include:

  • Portable belt drive TECH series compressor with convenient control panel, larger wheels and long handle for maximum portability.
  • Fitted with the popular and highly regarded B28B compressor pump unit.
  • Lubricated design for longer life and lower noise.
  • Advanced cooling system which concentrates cooling air flow to the compressor head.
  • Simple maintenance.
  • Automatic stop start control.
  • 100Lt air receiver providing plenty of storage.
  • Control panel with quick release outlet, two gauges and pressure regulator.
  • High quality electric motor 2.2kW (3Hp) 230v/1/50Hz.
  • 355L/min maximum pressure 10 Bar (145 psi).
  • 2 Year Warranty On Pump, T&C Apply



All direct drive and belt driven models operate from a domestic 13 amp supply.

*If your compressor is in constant use we would recommend the screw compressor.

Specification

kW 2.2
Hp 3
L/min 355
c.f.m 12.5
Bar 10
Psi 145
Receiver Size 100Lt
Volt 230
Kg 71
Product L x W x H (mm) 1070 x 385 x 840
dB(A) 96
